For Locksmith Technicians & Security Researchers
Apex KW1 Comprehensive Lock Training Bundle
See inside the lock. Master the mechanics. This complete training set pairs a full-view transparent KW1 practice cylinder with a 5-piece multi-profile tool set — covering both residential and automotive lock standards for hands-on professional skill development.
✓ Full-View Transparent Cylinder
✓ 5 Keyway Profiles
✓ Hardened Alloy Steel Tools
✓ Protective Hardshell Case
Visibility
100% Full-View
Optical acrylic — see every pin in real time
Primary Profile
KW1 Standard
North America’s most common residential keyway
Tool Coverage
5 Keyway Profiles
Residential + automotive standards
Kit Weight
0.90 lbs
Full kit with protective storage case
😣 Learning lock mechanics from diagrams alone is slow and frustrating. Without seeing the internal pin stacks respond in real time, it’s nearly impossible to build reliable tactile intuition. The Apex KW1 transparent cylinder lets you watch every pin, spring, and shear line interaction as it happens — turning abstract theory into immediate, repeatable understanding.
Module 1 — KW1 Transparent Practice Cylinder
🔍
Real-Time Visual Feedback
Watch shear line alignment and pin stack response as you work — no guesswork, instant comprehension.
🎯
Factory-Calibrated KW1 Pins
Pre-set to standard KW1 pin depth specifications for accurate, repeatable training demonstrations.
🧪
Optical Acrylic + Brass Core
High-clarity acrylic shell with precision brass internal components for durable, long-term classroom use.
🏢
Classroom & Field Ready
Compact form factor fits training benches, demonstration tables, and portable field kits.

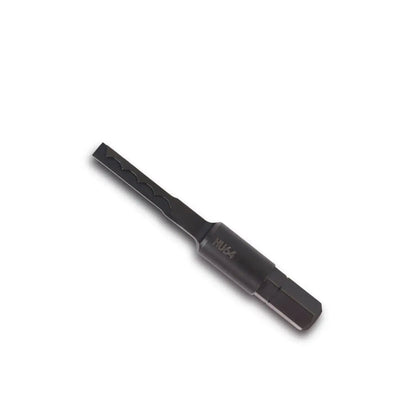

Module 2 — 5-Profile Keyway Training Tool Set
HU64 — Euro Luxury Profile
Sidebar wafer keyway standard
Common in European luxury vehicles
Common in European luxury vehicles
HU66 — German Auto Group Profile
High-volume wafer keyway standard
Widely used across German auto platforms
Widely used across German auto platforms
SIP22 — Italian Compact Profile
European compact vehicle keyway
Multiple model year coverage
Multiple model year coverage
HU100R — Euro Premium Sidebar
High-security sidebar wafer keyway
Precision cylinder profile
Precision cylinder profile
HON66 — Japanese Sedan Profile
Standard wafer lock keyway
Common Japanese passenger vehicle profile
Common Japanese passenger vehicle profile
All 5 Profiles
Covers major global keyway standards
Residential + automotive applications
Residential + automotive applications
🔬 Craftsmanship & Material Standards
Training tools are constructed from 301 hardened stainless steel / heat-treated alloy steel with 45–55 HRC hardness for torsional rigidity during repeated practice. The hexagonal drive shaft architecture follows torque-transfer principles referenced in ANSI/BHMA A156.5 industry standards. Alloy steel meets ASTM A276 specifications with ≥600 MPa tensile strength, resisting deformation during regular training use.
ASTM A276
45–55 HRC
≥600 MPa
ANSI/BHMA A156.5
Optical Acrylic + Brass
★★★★★
“Finally understand the shear line”
Watching the pins move in real time made everything click. Best training tool I’ve used in 10 years.
★★★★★
“Great for classroom demos”
Students immediately grasp pin tumbler mechanics when they can see inside. Highly recommended for instructors.
★★★★★
“5 profiles in one case”
The multi-profile tool set covers everything I need for automotive training. Solid steel, great haptic feedback.
★★★★★
“Built for professionals”
Quality is exactly what I expected. The hex drive shaft gives precise control. Case keeps everything organized.
🏫 Who Is This Kit For?
Designed for licensed professionals and accredited programs requiring structured, hands-on lock mechanics training.
Licensed Locksmith Technicians
Physical Security Researchers
STEM Engineering Students
Hardware Enthusiasts
Accredited Training Programs
Training Workflow — 3 Steps
1
Start with KW1 Cylinder
Use the transparent cylinder to observe pin stack behavior and shear line alignment in real time.
2
Progress to Profile Tools
Select the appropriate keyway profile tool and practice controlled rotational technique via the hex shaft.
3
Build Cross-Profile Skill
Repeat across all 5 profiles to develop comprehensive, transferable lock mechanics proficiency.
💡 Tip: Wipe tool blades with isopropyl alcohol after each session and store in the included hardshell case to maintain precision tolerances.
Product Specifications
| Product Type | Lock Mechanism Training Kit |
| Primary Training Profile | KW1 5-Pin Standard Cylinder |
| Additional Training Profiles | HU64 / HU66 / SIP22 / HU100R / HON66 |
| Lock Body Material | High-Clarity Optical Acrylic + Brass Core |
| Tool Material | Hardened Alloy Steel / 301 Stainless Steel |
| Cylinder Package Dimensions | 5.51 × 1.77 × 1.77 in |
| Full Kit Weight | 0.90 lbs (with protective storage case) |
| Case Dimensions | 5.91 × 3.94 × 1.97 in |
| Recommended Uses | Locksmith training, physical security research, STEM education |
Professional Ethics & Compliance
This product is manufactured and sold strictly for legitimate locksmith training, physical security research, and educational purposes only. By purchasing this kit, you confirm that you are an authorized professional or student in a relevant accredited program, and that you will use all contents in full compliance with all applicable local, state, and federal laws and regulations.
Unauthorized or unlawful use of lock training tools is strictly prohibited. We reserve the right to refuse sale to any individual we have reason to suspect may use these tools for criminal or unauthorized purposes.
Unauthorized or unlawful use of lock training tools is strictly prohibited. We reserve the right to refuse sale to any individual we have reason to suspect may use these tools for criminal or unauthorized purposes.
FAQ
Is this kit suitable for beginners learning lock mechanics?
Yes. The KW1 profile is one of the two foundational standards (alongside SC1) for learning North American pin tumbler lock mechanics, and the transparent design makes core concepts far easier to grasp for new learners.
Can the transparent cylinder be rekeyed for custom training setups?
This acrylic cylinder is factory-calibrated to standard KW1 pin depths, optimized for smooth educational demonstrations and long-term durability in regular training environments.
What keyway profiles are included in the tool set?
The 5-piece set includes HU64 (Euro Luxury), HU66 (German Auto Group), SIP22 (Italian Compact), HU100R (Euro Premium Sidebar), and HON66 (Japanese Sedan) — covering major global lock groove specifications for both residential and automotive applications.
Who is this product intended for?
This kit is designed exclusively for licensed locksmith professionals, certified physical security auditors, authorized automotive technicians, and accredited STEM educational programs.
See Inside the Lock. Master the Mechanics.
Select your keyway profile above. Complete training bundle for licensed locksmith professionals and security researchers. $33.99 per profile.
